INJORA MB100 Brushed Mini ESC 20A For 1/24 1/18 RC Crawlers

INJORA MB100 Brushed Mini ESC 20A for 1/24 1/18 RC Crawler SCX24 TRX4M
Note:

• Compatible with 030/050/130/180/370 brushed motors with these plugs:TRX4M,JST-PH 2.0
• Compatible with 2-3S lipo batteries with these plugs:JST-PH 2.0,TRX-4M,JST-XH 2.54
• Designed for mini RC crawlers, compatible with various vehicle modifications and builds such as: SCX24/AX24, TRX4m
• Compatible with most of the receiver and remote combinations that with CH2 such as: INJORA transmitters, stock SCX24 black V1 ESC, Flysky GT5, etc
• These motors are compatable with 3s lipos when paired with our MB100 ESC: INJROA Purple 180 motors

Features

• IP67 waterproof ratings fully waterproof design!
• Allow superior lowspeeddriving.
• Linear throttle response gives you more control and smoother driving experience.
• Multiple Protection: battery low-voltage protection, over-heat protection, throttle signal loss protection, BEC over current protection, and short circuit protection.
• DEO (Dynamic Electronic Overload) function: provides smoother power delivery, better control, and overload protection for improved performance in RC Crawlers and similar vehicles.
• Come with a built in6V/3ABEC
• This ESC is quiet and silent because its sound is ultrasonic. (Ultrasound is simply sound whose frequency is too high to be heard by the human ear)
• EQUIPMENT NEEDED (not included): Transmitter & Receiver

Specifications:

• Model: INJORA MB100 ESC (M-Mini, B-Brushed)
• Continuous / Peak Current: 20A / 100A
• BEC Output : 6V/3A (linear Mode)
• Motor Type Support : Brushed Motor ( 030 / 050 / 130 / 180 / 370 )
• Battery Cells : 2-3S Lipo
• Sze: 38mm*26.5mm*11mm
• Weight : 15g

Package List:

• 1 * Micro RC CarESC

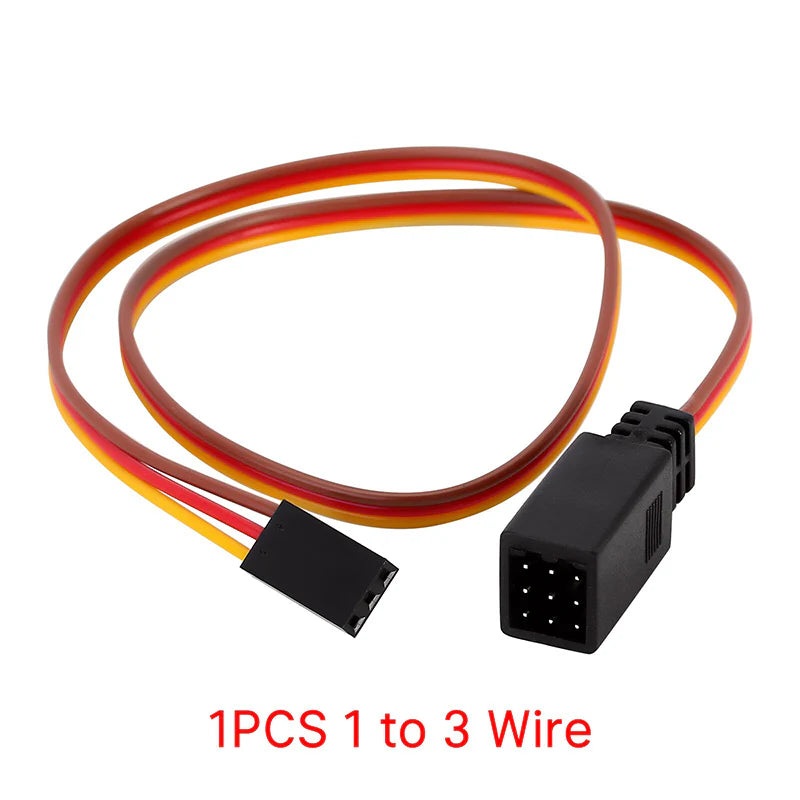

• 1 *Receiver Connect Wire(JR Plug)
• 1 *MotorAdapter Cable (Female TRX4M to Male JST-PH 2.0)
• 1 * Battery AdapterCable (Female JST-PH 2.0 to Male TRX-4M)
• 1 * Battery AdapterCable (Female JST-PH 2.0 to Male JST-XH 2.54)
• 1 *Instruction Manual
